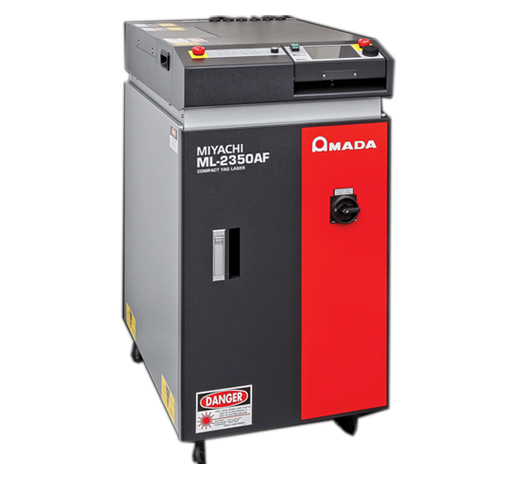

ML-2350AF NdYAG Laser Welder – 70 W

ML-2350AF Nd:YAGLaser Welder – 70 W

Formerly known as LW70AC, LW70ACE

The mid-range power of AMADA WELD TECH’s ML-2350AF is ideal for high penetration laser spot welding or low to medium volume laser seam welding in thinner materials.

70 J Pulse Energy and 7 kW Peak Power

Penetration Seam and Spot Applications

Excellent Multi Workstation Source

Four Energy Share or Six Time Share

200 Hz Repetition Rate

32 Programmable Weld Schedules

Air Cooled

Technical Specifications

Technology Nd: YAG

Average Power 70 W

Peak Power 7 kW

Max Rep Rate (pps) 200

Communication Digital IO, RS-485

Input Power 220 VAC +10%/-15%, 50/60Hz ±3%

Single or 3 Phase 3 Phase

Size (W x D x H) 20.9 in x 39.2 in x 39.0 in (530 mm x 995 mm x 990 mm)

Weight 485 lb (220 kg)
